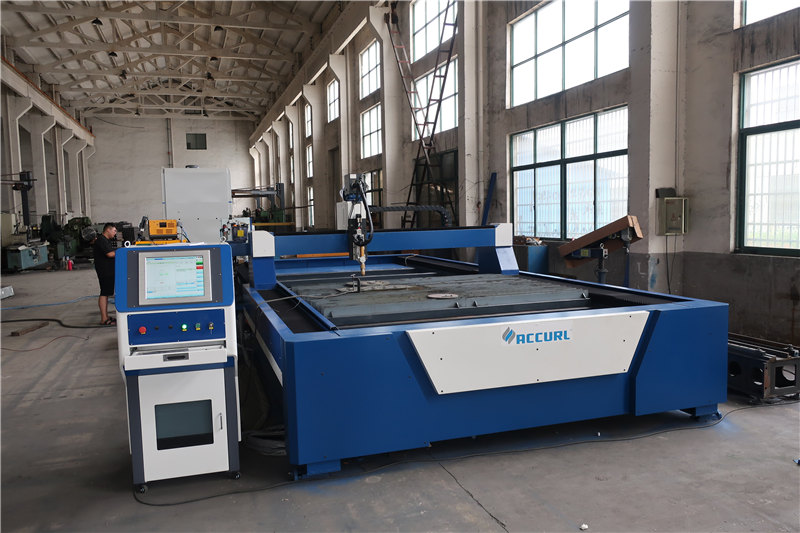

mild steel flame mini cnc metal cutting machine

mild steel flame mini cnc metal cutting machine

Cutting method Guide

1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;
2,Plasma cutting:Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;
3,Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.

Product Description

Cutting Mode
Plasma
Flame
Flame and Plasma
Driving Mode
Servo motor or stepper motor , Dual-side
Cross beam Width(m)
3m or 3.5m
effective Working Width(m)
 1m less than track width
Guide rail Length (m)
According to your cutting demands
effective working length (m)
2m less than guide rail length
Flame Cutting thickness(mm)
 5-200 (specific type up to 300)
Plasma Cutting thickness(mm)
According to the plasma generator, common 1-30mm
Number of Cutting Torch
At customers’ requests
Cutting Speed (mm/min)
50-8800
Running speed (mm/min)
12000
NC Controller
LANSUN or other China or import System you want
Plasma Power
100A ,120A , 200A ,300A ect .  China , USA brand
Programming software
China or Australia professional nesting software
Operation language
English or Chinese or Russian

Detailed description

Machine body structure

1.Steel hollow beam design ensures good heat dissipation without deformation;
2. Box weldment structure process tempering ensures excellent rigidity and intensity;
3. Double drive adopts symmetrical structure.

Transmission

1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;
2. Gear box: SEW, high output torsion low noise.

Drive Model

Japan AC servo motor or Stepper motor Bi-side Driving.

GUIDE RAIL
Process mode: High precision grinder;
Longitudinal rack accuracy: 7 grade;

HEIGHT CONTROLLER

Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Flame:Electric height adjusting system.
Plasma:Arc voltage height controller.

CNC System

1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.
Beijing or Shanghai or American Brand CNC system is oPtional

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Voltage: Machine 220V, plasma 380V
Rated Power: 500W/800W/1000W
Dimension(L*W*H): 3*6
Weight: 1500KG
Certification: CE & ISO
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
name: cnc cutting machine
cutting mode: plasma/flame cutting machine
Drive motor: China stepper motor or Japan servo motor
gas or plasma torch number: single , or multihead
Plasma generator /plasma source: CHINA famous brand HUAYUAN LGK series , or USA brand
Machine voltage: 220V/380V/415V /440V ,can be customize
cutting gas: oxygen/oxyfuel +Propane acetylene ; press air
THC sensor: Automatic or Mechanical
procesing material: stainless , ion , cooper , mild /high carbon steel ,galvanized sheet
Option: Straight cutting torch , bevel cutting
