Product Description

The 5 axes water jet cutting machine equips with the A axes (jet swing axes) and C axes (rotating axis) based on the original 3 axes water jet cutter. These two axes can make the cutting head swinging at any angle during the cutting process, and this machine can calculate the real-time cutting trajectory by using the preset angle model of numerical control system, after that the calculation result will be corrected according to the material properties and thickness of the cutting workpiece. With 5 axes control system and 3D programming software, our water jet cutting machine can achieve true three-dimensional dynamic cutting. This machine can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.

Technical Parameters

Bevel axis (A): ±45°
Rotary axis (C): ±540°
Control accuracy: ±0.01mm
Angle accuracy: 0.01°

Italy ECS Controlling System

One full set of machine consists of cnc controller,worktable ,pump ,abrasive delivery system and water cooling tower.

WATERJET HIGH PRESSURE PUMP

Main feature:

Control:PLC

Shifting:electro-hydraulic control

Cooling:cooler/oil heat exchanger

In let water filter accuracy:≤0.45μm

Oil-return filter accuracy:20 μm

Working temp:0-60°c

Outlet:UNF 3/8"

Cooling in/out-let:NPT1"

Max orifice size:0.33mm

Configuration:

-the configurations single pole two-way plunger type intensifier

- The intensifier assembly is imported the USA(Hypertherm)

- USA pipeline

- Single-row type water filtering system

(5Micron, 1micron, 0.45micronparallel)

- Manual pressure regulation

function

- Extra pressure auto stop and protection

- Three-ply safeguards

WATERJET CUTTING TABLE

Model(can be customed)		ACCURL-L2015	ACCURL-L3020	ACCURL-L4030	ACCURL-X1520	ACCURL-X1830
Machine type (L:Gantry,X:Cantilever)		Gantry	Gantry	Gantry	Cantilever	Cantilever
Efficient cutting area(mm)		2000*1500	3000*2000	4000*3000	1500*2000	1800*3000
Axis travel(mm)	X axis	2000	3000	4000	1500	1800
	Y axis	1500	2000	3000	2000	3000
	Z axis	150	150	150	150	150
CNC control system		Ac Servo motor
Accuracy	Cutting accuracy	+/- 0.1mm
Accuracy	Repeat accurary	+/- 0.05mm
Processing speed		0-15m/min
Power supply		240V/380V/415VAC,3ph,50Hz/60Hz(can be customed)

WATERJET CONTROLLER

17”LCD liquid crystal display

- DNC on-line working function

- Functions of returning arbitrary point, bending,

and circular arc working auto deceleration.

- Function of cutting figure imitation display.

- 80GB memory hard disk

- MITSUBISHI AC servo driver and motor.

-1GB memory card

- Multilingual function(Chinese English ,etc.,)

- Drive-by-wire and hand-hold controller,

- NAIKY PCIMC-6A special software is special for YC.

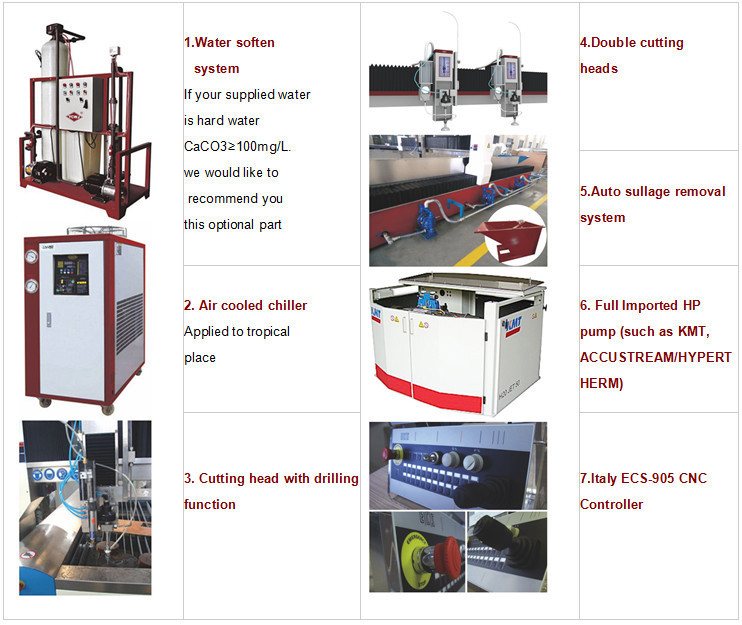

Optional accessories

Application area and cutting samples:

Our Services

1. Pre-sale service

1.1 YC owns a 10 years team focusing on Waterjet,we promise providing first-time service.

1.2 Any question will be replied within 12 hours ,we promise providing a reasonable and detailed quotaiton.

1.3 welcome Sending material to us, and we will cut into sample as requirement.

2. After-sale service

2.1: In the guarantee period, if there is an accident, we will response within 12 hours after receiving the news. We will direct the operating staff in the ways of telephoto fax and email. If you still don’t know how to repair, we will send a maintenance staff to the spot within 48 hours after receiving news.

2.2: if need purchase wearing parts , we will response within 12 hours and provide technical assistance after receiving the news.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: L3015/3020/2515/4020
Voltage:380/220/400VAC, 50Hz ,3 phase
Rated Power: 30kw/40hp or 37kw/50hp
Dimension(L*W*H): according to machine model
Weight: 3000KG-7000kg as to model
Certification:CE, ISO9001
Warranty:1 year
After-sales Service Provided: Engineers available to service machinery overseas

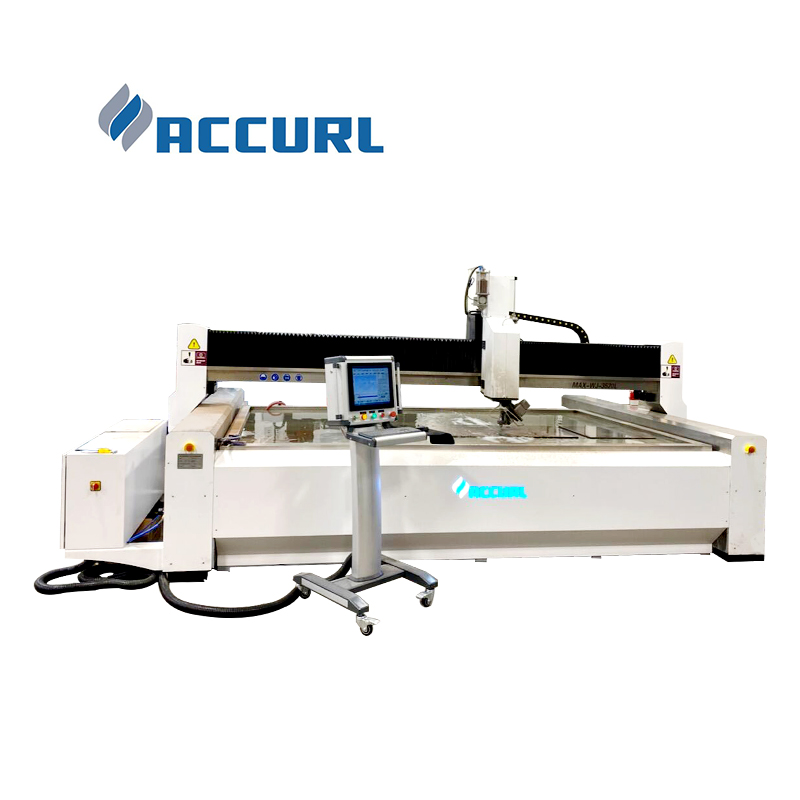

Machine name: New or used water jet cutting machine for stone glass metal alloy
Cutting materials: Stainless steel , brass, aluminum, marble,granite,tile,glass.etc
Structure type: Gantry type or Cantilever type
Max. pressure:380mpa or 420mpa
Cutting accuracy: +/-0.1mm
Max.flowrate: 3.7 L/Min
Max. orifice diameter: 0.33mm(0.013'')
AC servo control system: MITSUBISHI
Ball screw: HIWIN
Intensifier Assembly: Hypertherm(Accustream), KMT(H2
