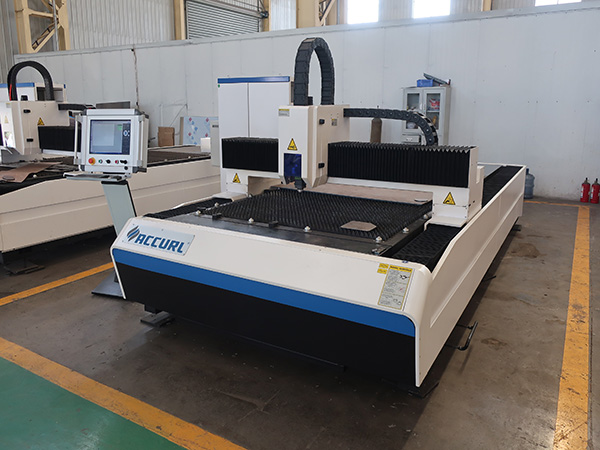

Pipe tube 6m metal stainless steel cutting fiber laser cutting machine

Description:

Fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel,stainless steel cutting,it combines function of compact layout, stable optical link, convenient operation and reliable performance in one.

Features:

1.Integrated machine design, left and right collecting drawer design highly saving space.

2. Stability and reliability for light path system and control system.

3. Fiber laser has high and stable function and lifespan which is over 100000 hours.

4. Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.

5. High performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.

6. Imported ball screw and square guide provides high speed and accuracy when working.

7. Water chiller high capacity provides stability during long-term operation.

8.A separate control box and DSP control makes it easier to control the machine

10. Without consumables. Easier to use, adjustment of the optical beam is not necessary

Parameters:

Working area	3000x1500mm
Laser Power	1KW(300W/500w/750W/1200W/2000W optional)
Laser Wavelength	1064nm
Application Materials	Metal
Max. Cutting Thickness	SS:4-10mm,Carbon steel:8-10mm
Gross Power	8-10KW
Positioning Accuracy	±0.03mm/m
Reposition Accuracy	±0.02mm
Max cutting speed	15m/min(different material, different speed)
Max speed of Movement	80m/min
Cooling Model	Water cooling

cutting parameter

Material	Thickness(mm)	300W	500W	750W	1000W	1200W	1500W	2000W	3000W	4000W
Material	Thickness(mm)	CUTTING SPEED m/min
Carbon steel (O2)	1	8	10	12	15	18	20	25	30	35
	2	3	5	6	7	8	10	12	18	24
	3	0.8	2	3	3.5	4	4.5	5	6	15
	4	0.6	1.5	1.8	2	2.5	3	3.5	4	13
	5		1	1.5	1.8	2	2.5	3	3.5	11
	6		0.6	1	1.5	1.5	2	2.5	3	9
	8			0.6	1	1.2	1.5	1.8	2	7
	10				0.6	0.8	1	1.2	1.5	6
	12					0.6	0.8	1	1.2	5
	16						0.6	0.8	1	2.5
	20							0.6	0.8	1
	22									0.5
	24
Stainless steel (Air)	1	5	10	12	15	18	20	25	30	35
	2	1	3	5	6	8	10	15	20	25
	3		1	1.5	2.5	3.5	4	5.5	11	15
	4			0.6	1	1.5	3	3.5	8	11
	5					0.6	1.5	2.5	5	8
	6						1	1.3	3	5
	8							1	2	3.5
	10								1	1.8
	12								0.6	1
	14									0.5
Aluminum plate	1		4	6	8	10	18	20	24	27
	2		1	2.5	4	5	6	8	14	17
	3				1	1.2	2	5	8.5	12
	4						1	3	5	8
	5							1.5	3.5	5
	6							1	2	3
	8								1	1.5
	10									0.5
Copper plate	1		3	3.5	10	15	18	25	28	25
	2		0.6	1	3	5	6	8	12	15
	3				0.6	1.5	2	2.5	3.5	4
	4						0.6	1	1.5	1.5
	5							0.8	3	1
	6							0.6	2	0.5
Galvanized sheet	1	4	8	10	12	15	18	20	25
	2	1	2	4	6	8	10	12	16
	3		0.6	1	1.5	3	3.5	5	10
Titanium plate	1	4	8	10	12	15	18	20	25
Titanium plate	2	1	2	4	6	8	10	12	16

FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Quick Details

Application: Laser Cutting, Metal Stainless Steel Plates
Condition: New
Laser Type: Fiber Laser
Applicable Material:Acrylic, Crytal, Glass, Leather, Metal, plastic, Rubber, Stone, Wood
Cutting Thickness: 0-30mm
Cutting Area: 1500*3000mm
Cutting Speed: 0-60000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Model Number: 1530/2050/3060
Certification: CE, GS, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 500W / 1000W / 2000W / 3000W
Driver: japan yaskawa driver motor
Guide: japan THK
rack and pinion: Germany Atlanta
