plasma cutting machine with pipe cutter system

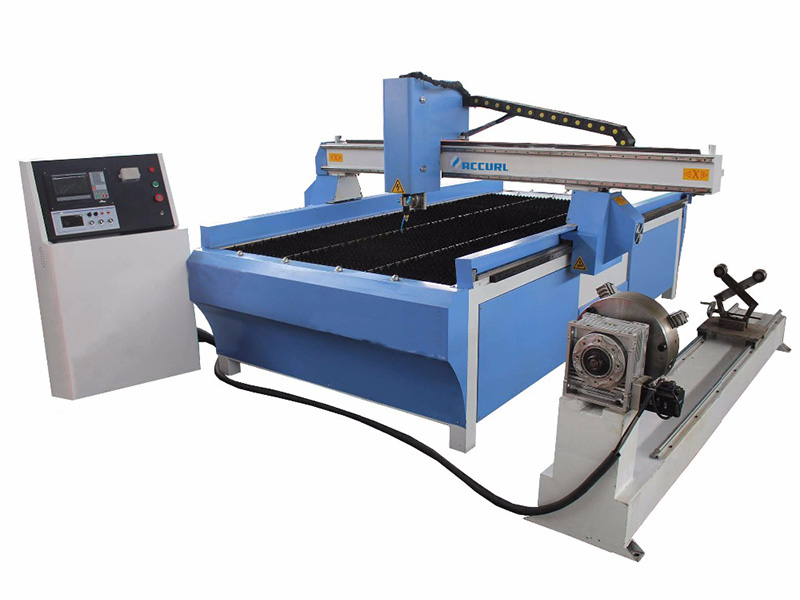

cutting pipe with plasma cutter

Machine Feature


This type of the machine were equipped the rotary attachment system , so can cut

some cylinder items

1 .The machine is all welded as seamless steel structure. Steady structure and long life time

2. High configuration, high cutting speed and precision.

3. Auto ARC starting. Steady performance.

4.Control system: DSP with USB interface

5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.

6. File format: G-code

7.Suitable Software : Artcut, Type3, ArtCAM. Beihang Haier.

Application:
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

Technical Parameter


ModelOLT-P-1560
X,Y working area1500mm*6000mm
Z working area150mm
Lathe bedsteel structure with water sink
Machine Power8.5kw
Working voltage380V/50HZ
Reposition precision0.05mm
Processing precision0.1mm
Maximum cutting speed21000mm/min
Torch Height control modeAutomatic
Pipe cutting propertyDiameter 300mm, length 6000mm

With strengthened support structure

Plasma power supplyHypertherm Plasma power supply made in USA HPR130XD
Control systemDSP
MotorsStepper
SoftwareFASTCAM
Weight4600kg
Dimension2.2m*7m*1.45m

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number:OLT-P-1560
Voltage: 380V/50HZ
Rated Power: 8.5kw
Dimension(L*W*H): 2.2m*7m*1.45m
Weight: 4600kg
Certification: CE FDA certificated
Warranty: 2 years warranty
After-sales Service Provided: Engineers available to service machinery overseas
Maximum cutting speed: 21000mm/min
Torch Height control mode: Automatic
Pipe cutting property: Diameter 300mm, length 6000mm With strengthened support structure
Plasma power supply: Hypertherm Plasma power supply made in USA HPR130XD
Software: FASTCAM
Packaging & Delivery
Packaging Details standard export wooden case
Delivery Time within 5 days

Specifications


plasma cutting machine with pipe cutter system
1 suitable for both pipe and plate cutting
2 two years warranty
3 CE FDA
