portable water jet glass cutting machine,heavy - duty water jet cnc machine

water jet glass cutting machine

Detailed Product Description

Model Number:	accurl-1515L CNC Water Jet Cutting Machine	Effective Cutting Area(Length):	1500mm
Effective Cutting Area(width):	1500mm	High Pressure System:	380(4000Bar)
Voltage:	220V～480V/50,60HZ.3PH	Keywords:	Portable Water Jet Cutting Machine

Acrylic organic portable glass cnc water jet cutting machine with competitive price

Product Description

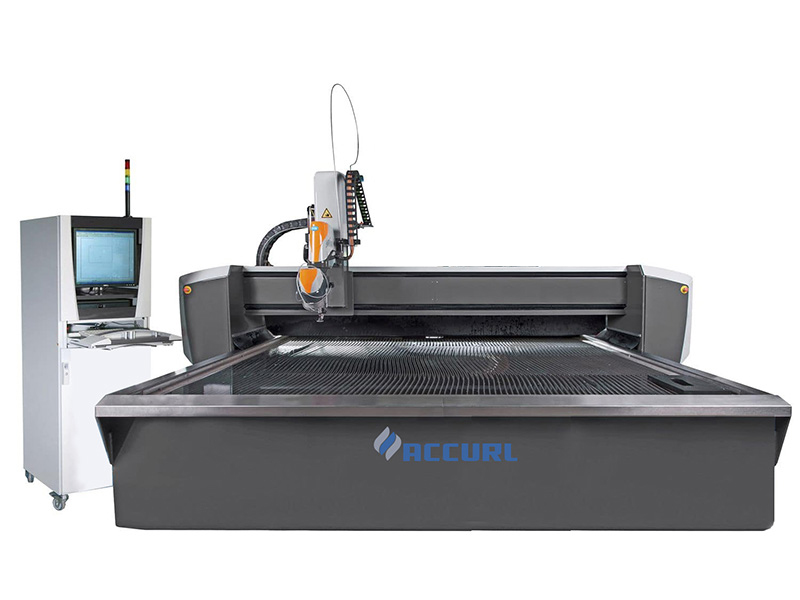

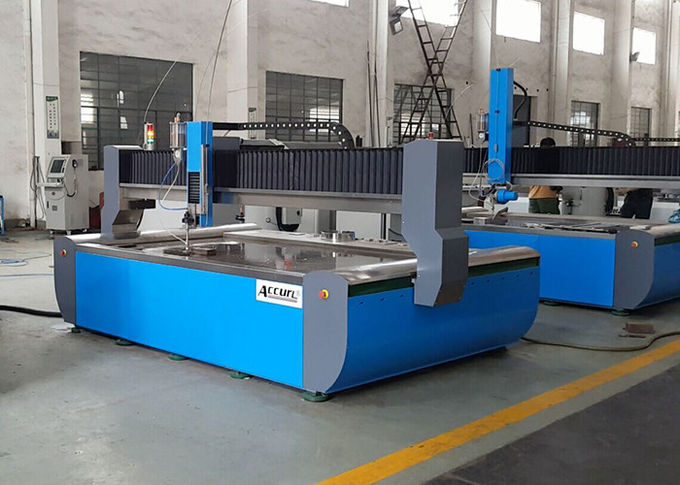

The ACCURL® abrasive water jet machine is a high-pressure waterjet machine that utilizes straight water cutting or abrasive waterjet cutting to cut several types of material. The ACCURL® is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity. The ACCURL® is built to the most stringent standards in the machine tool industry.

The ACCURL® using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 8".

The ACCURL® will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass, Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium.

Perfect Waterjet Cutting:

ACCURL® Waterjet machining is achieved by forcing a large volume of water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting. The abrasive is introduced into the high pressure water stream, which then starts the erosion of the harder materials. Although waterjet machining is the slowest cutting process, there are definite advantages that outweigh its' pace:

1. No Heat-Affected Zone

2. No Mechanical Stresses

3. Very Narrow Kerf

4. Can Cut Various Materials

Main Features

The fast, efficient, and precise ACCURL® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4’ 7” square cutting area of the proven is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixturing and easy access to the cutting table, setup times are significantly reduced, increasing productivity and profitability.

1. Fastest cutting speeds and best precision compared to any abrasivejet in the industry and is backed by our exclusive NAIKY PCIMC-6A® Software with real world cutting data

2. Programmable Motorized Z-Axis with a precision ACCURL® 5i Nozzle Assembly can boost cutting productivity and process efficiency

3. Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option)

4. Precision X-Y Axis rigidly mounted to the cutting table

5. Pre-loaded linear bearings and precision ball screws

6. Low maintenance, high reliability scissor-style hard plumbing

7. Drive system sealed against water, dirt, and grit

8. Easy operator access to the work area

9. High efficiency Generation 4 USA Hypertherm ® pump systems available in 30, 40, or 50 hp with operating efficiencies up to 90%

10. Robust and accurate design for tight tolerance cutting and reliable operation

11. Rapid Water Level Control for quiet and clean submerged cutting

12. Bulk Abrasive Delivery System transports garnet from the assembly’s large hopper into the Zero Downtime Hopper located on the Z-Axis

13. Optional Variable Speed Solids Removal System (VS-SRS) designed for tough industrial use increases uptime through automated solids removal

14. Shipped as a completely pre-assembled and factory-tested system

System

Hp System: WJPOWER-400(Semi Imported Configuration)

Max.Pressure: 400Mpa

Max.Flowrate: 3.7L/min

Electrical Power:30KW/40HP

Voltage: 220V~480V/50,60HZ.3PH

Some Key Parts Adopt Imported Parts

our service

1. Standardization of Service “212"

2. response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days

3. Installation Service

Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )

4.Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

5.Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

Machine warranty is 3 year. We offer flexible extended warranties if needed.

Packing & Delivery

1. Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.

2. All the spare parts of the machine were covered by soms softmaterials,mainly using pearl wool.

3. The outmost is wooben case with fixed formwork.

4. The botton of the wooden case has firm iron jack,covenient to hading and transport.

Specification

Model			accurl-2030L
working table		mm	2000 x 1000
X-axis	stroke	2000	2000
X-axis	Speed	0~15	0~15
Y-axis	stroke	1000	1000
Y-axis	Speed	0~15	0~15
Z-axis	stroke	150-180	150-180
Z-axis	Speed	0~12	0~12
Control accuracy		mm	± 0.01
Positioning accuracy		mm	± 0.02
High Pressure System	Max Pressure	380	380
High Pressure System	Power	37(50HP)	37(50HP)
Total electric power		KW	38
Max load of working table		Kgs	1000
Format supported		AI, PLT, DXF, etc
Machine weight		Kgs	4350
Outside dimension		mm	4050x2250x1850
Product Name			Portable Water Jet Cutting Machine
