Applicable Industries

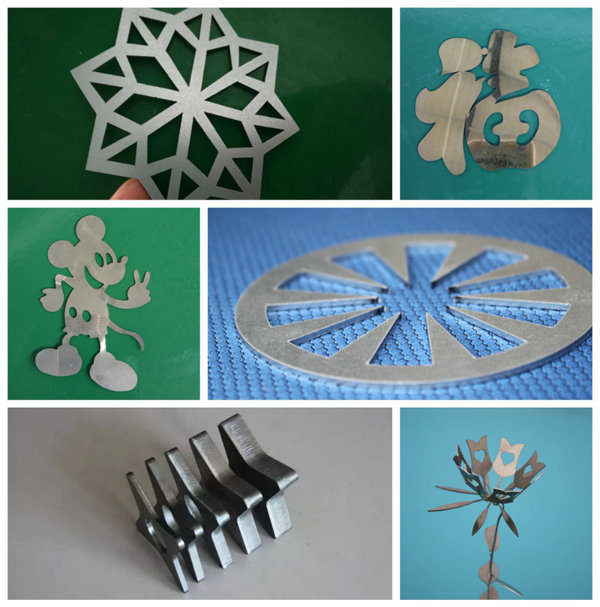

This machine is widely used for cutting metal materials, and can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.

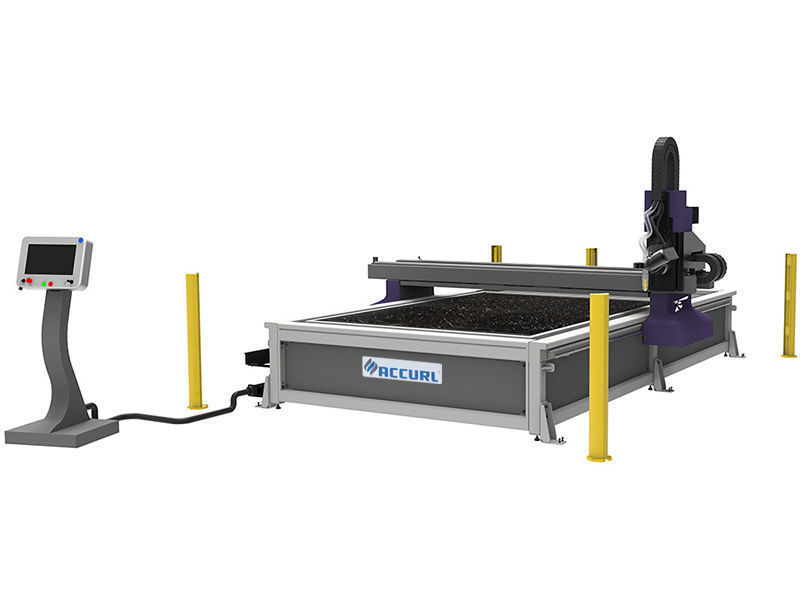

Components of cutter machine
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.
C :Plamsa torch or flame torch
D : Electric control assembly including: electric cabinet, longitudinal and transverse motors and accessoriesE: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
F: Height adjustment: Torch Height Controllor (can cut different height material ).
Machine parameter
Cutting Thickness: 1-50mm
Cutting Speed: 10, 000
Voltage: AC380V
Gas: Acetylene
Machine Structure: Channel Steel Lathe Bed, Serrat
Rated Power: 3000W
Warranty: 2 Years
Operation System: USB Interface
Plasma Power: 60A, 120A, 200A
Working Area: 1300*2500mm
Software Compatibility: Coreldraw, Photoshop, Autocad
Controller System: Beijing Start System
Guide Rail: Taiwan Square Guide Rail
Drive Motor: Stepper Motor (Servo Motor for Optional)
Transport Package: Plywood Box, Free of Fumigation
Specification: Machine size can be customized
Origin: China
Model NO. | plasma cutting machine |
Applicable Materials | Iron Sheets, Aluminum Sheets, Galvanized Sheets, Titanium Plates, Stainless Steel |
Working Area | 1300*2500mm /1500*3000mm |
Cutting Thickness | (60A)≤ 6mm (120A)≤10mm (200A)≤15mm |
Max. speed | ≤8000mm/min |
working speed | ≤50000m/min |
Gross Power | 8.5KW |
Working Voltage | 3 Phases, 380V/50Hz |
Operation System | USB Interface |
