Applicable Field
Widely used for metalsheet processing, advertising trademark, advertising character, high/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade,electronic parts, eyeglasses, spring, circuit board, kettle, medical microelectronics, hard ware, knives tool, measurement, instrument, etc.
Applicable Material
Stainless steel, carbon steel, alloy steel, spring steel, aluminum, aluminum alloy, galvanized sheet, cincalumzalutite, pickling plate, copper, silver, gold, titanium and other metal sheet, pipes and tubes.
Parameter
Working Area | 1300mm*2600mm |
Laser Power | 300W/ 500W/1000W(option IPG) |
Laser Wave Length | 1064nm |
Working Table | sawtooth |
Maximum Idle Running Speed | 80m/min |
Position Accuracy | ±0.05mm/m |
Position Speed | 20m/min |
Minimum Line Width | ± 0.1mm |
Cutting Thickness | ≤6mm |
Control System | Professional laser control system--BOCHU |
Position Type | red dot |
Power Consumption | ≤12KW |
Working Voltage | AC 380V/50Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Dimension | 3850*2450*1800MM |

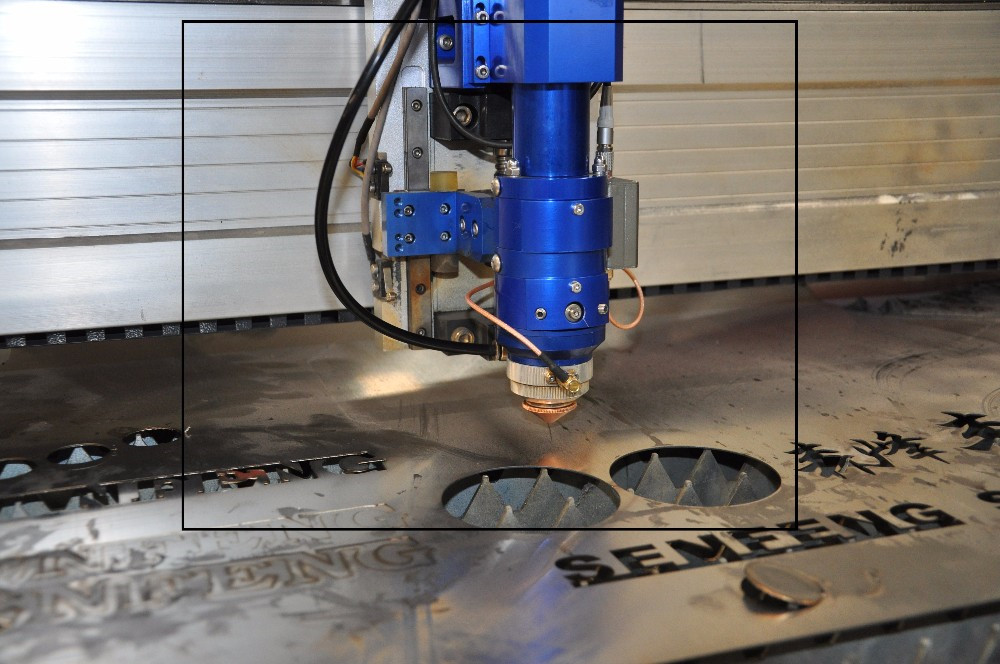

Details

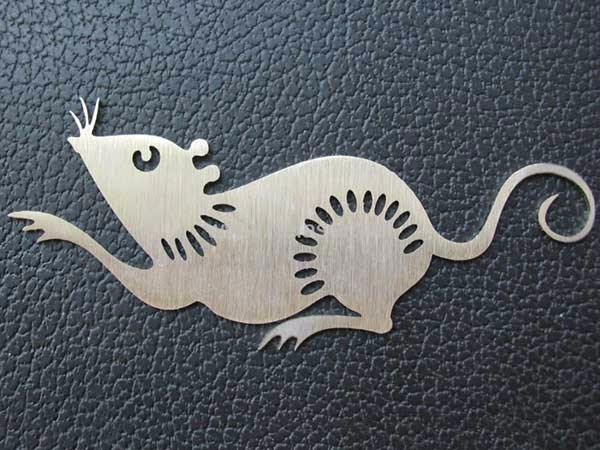

Sample
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Acrylic, Glass, Leather, Metal
Cutting Thickness: ±0.05mm/m, ≤6mm
Cutting Area: 1300mm*2600mm
Cutting Speed: 20m/min
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software:Professional laser control system--BOCHU
Graphic Format Supported:AI, BMP, DWG, DXF
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number:fiber cutting laser machine
Certification: CCC, GS, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Working Area: 1300mm*2600mm
Laser Power: 300W/ 500W/1000W(option IPG)
Laser Wave Length: 1064nm
Working Table: sawtooth
Running SpeedMaximum Idle Running Speed: 80m/min
Position Accuracy: ±0.05mm/m
Position Speed: 20m/min
Minimum Line Width: ± 0.1mm
Control System: Professional laser control system
