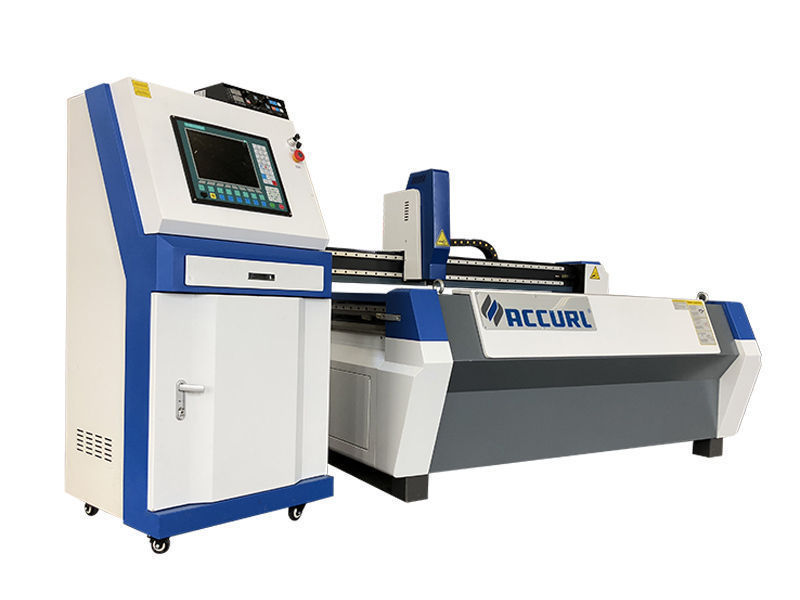

programmable plasma laser cutter plasma cnc cutting machine with maxpro 200

plasma arc cutting machine

Product Description

Accurl CPL Series Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to maintain constant at the same height and the quality, with the Arc-THC control sensor.

1. Perfect parallel movement:

The correct positioning is assured by high-resolution encoders, directly mounted on the motors. The synchronised system of the two motors assures perfect parallel movement of the gantry over the linear guides. Cutting Table: dry sectionized downdraft or water table is separately from the rails.

2. Automatic height positioning:

The ACCURL's gantry can accommodate multiple stations such as plasma and/or oxy torches. Included is a MicroEDGE Pro CNC Control unit, monitoring the Z-axis (by brushless AC Servo motor) for the automatic height positioning of the torch during the cutting process.
During the cutting process, the MicroEDGE Pro CNC unit measures the Arc Voltage and adjusts the Z-axis height to maintain a constant distance from the sheet for optimum cutting results.

3. Correct cutting height:

Each oxy-fuel torch carrier has an automatic flame ignition for the torch, as well as an integrated capacitive sensor "Hypertherm OHC" that controls the Z-axis movement (by brushless AC Servo motor ) for correct setting of the cutting height.

Details:

Place of Origin: China (Mainland)
Brand Name: ACCURL
Certification: CE
Model Number: GSII-L2040-PMAX-105A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 16500~21500 Set
Packaging Details: wooden cases for CNC plasma Cutting Machine
Delivery Time: 25 daty
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10 Set Month

Type	ACCURL CPL- 2040
Product Name	Metal Plasma Cutting Machine
Table Width	2100 mm
Table Lenght	4100 mm
Height Under Torch	150 mm
Machine Width	2850 min-1
Machine Lenght	5420 mm
Machine Height	1710 mm
Table Height	800 mm
X Axis Stroke	2050 mm
Y Axis Stroke	4050 mm
Weight	3150 kg
Max. Positioning Speed (X-Y)	30 m/min
Total Power Consumption (without Plasma System)	4 kw

CNC Plasma Cutting Machine Features

1. The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2. The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3. Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
4. Cutting mouth is small, tidy,and avoid a second dressing processing.
5. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates and so on.
6. High cutting speed, high precision, and low cost
7. The numerical control system disposes high, the automatic striking arc, the performance is stable.
8. Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U-disk exchange processing document, easy to operate.

STANDARD COMPONENTS

1. Portable monoblock construction with small footprint
2. Easy installation
3. Dual side AC servo Y motorization with direct planetary gear box, helical rack and pinion drive system
4. Precision Linear Rail Guide Ways in X and Y axis
5. High speed torch lifter with automatic arc voltage height control
6. Fully enclosed hose and cable carriers
7. Hypertherm Micro Edge Pro CNC
8. Integrated downdraft table with CNC programmable multi zone selection
9. Integrated dross bins
10. Magnetic Torch anti collision protection system
11. Laser pointer for plate alignment
12. CE safety specifications
