small 5 axis water jet steel cutting machine , desktop water jet cutter computerized

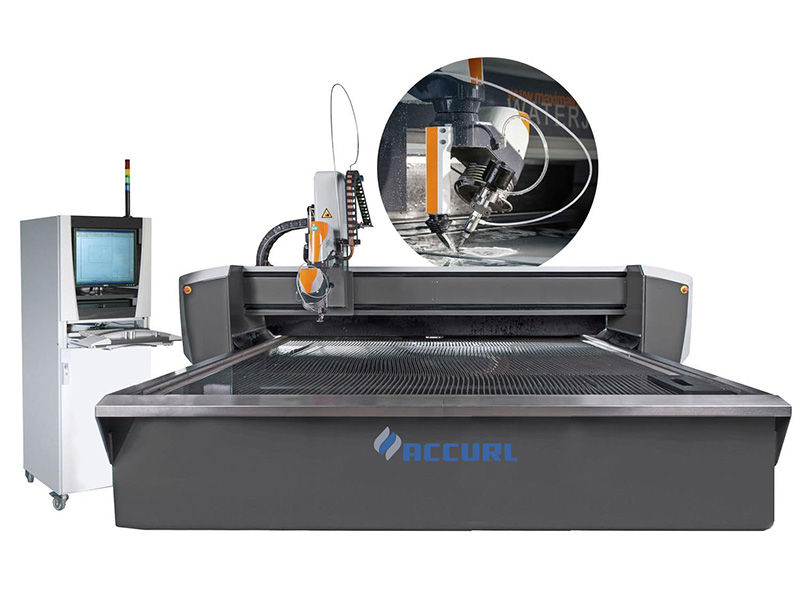

desktop water jet cutting machine

Detailed Product Description

Model Number:	ACCURL-1515L CNC Water Jet Cutting Machine	Effective Cutting Area(Length):	1500mm
Effective Cutting Area(width):	1500mm	Cutting Positioning Accuracy:	±0.5mm/m
Gantry Type:	Table	Keywords:	Water Jet Cutting Machine For Sale

Small 5 axis high presssure water jet cutting machine for sale from China

Product Description

The ACCURL® abrasive water jet machine is a high-pressure waterjet machine that utilizes straight water cutting or abrasive waterjet cutting to cut several types of material. The ACCURL® is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity. The ACCURL® is built to the most stringent standards in the machine tool industry.

The ACCURL® using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 8".

The ACCURL® will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass, Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium.

Main Features

The fast, efficient, and precise ACCURL® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4’ 7” square cutting area of the proven is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixturing and easy access to the cutting table, setup times are significantly reduced, increasing productivity and profitability.

1. Fastest cutting speeds and best precision compared to any abrasivejet in the industry and is backed by our exclusive NAIKY PCIMC-6A® Software with real world cutting data

2. Programmable Motorized Z-Axis with a precision ACCURL® 5i Nozzle Assembly can boost cutting productivity and process efficiency

3. Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option)

4. Precision X-Y Axis rigidly mounted to the cutting table

5. Pre-loaded linear bearings and precision ball screws

6. Low maintenance, high reliability scissor-style hard plumbing

7. Drive system sealed against water, dirt, and grit

8. Easy operator access to the work area

9. High efficiency Generation 4 USA Hypertherm ® pump systems available in 30, 40, or 50 hp with operating efficiencies up to 90%

10. Robust and accurate design for tight tolerance cutting and reliable operation

11. Shipped as a completely pre-assembled and factory-tested system

System

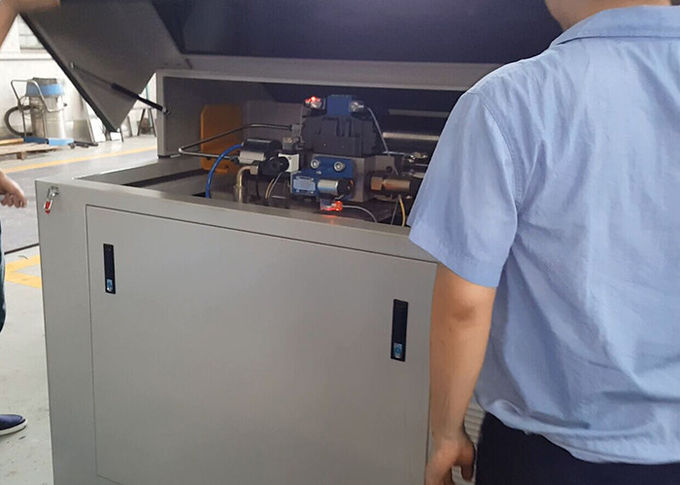

Hp System: WJPOWER-420D(Dual-intensifier HP System)

Max.Pressure: 420Mpa

Max.Flowrate: 7.4L/min

Electrical Power: 75KW/100HP

Voltage: 220V~480V/50,60HZ.3PH

Intensifier assembly is fully imported from KMT(H20 USA)

ITALY ECS-905 CNC CONTROLLER (OPTIONAL)

Oxygen lance cutting,plasma arc cutting

1. Waterjet cutting,laser cutting and drilling

2. Up to 16 controllered axes

3. Management of Gantry axes

4. 5-axes cutting torch management

5. Hardware Architecture based on AMD

6. (Industrial) Mobile,which combines high performance with low power consumption

7. Monitor 15’’ LCD-Integrated Tonch Screen

8. Peripheral interface:EtherCAT

9. Node EtherCAT to manage EcsLink,Mechatrolink＠1 and 2,Sercos＠1 ,Profinet＠1 and analogic drives

10. Up to 2048 I/O with Ether CAT

11. Modular machine panel(Optional)

12. Alphanumeric keyboard(Optional)

Packing & Delivery

1. Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.

2. All the spare parts of the machine were covered by soms softmaterials,mainly using pearl wool.

3. The outmost is wooben case with fixed formwork.

4. The botton of the wooden case has firm iron jack,covenient to hading and transport.

Specification

Model			ACCURL-3015L
working table		mm	3000 x 1500
X-axis	stroke	2000	3000
X-axis	Speed	0~15	0~15
Y-axis	stroke	1000	1500
Y-axis	Speed	0~15	0~15
Z-axis	stroke	150-180	150-180
Z-axis	Speed	0~12	0~12
Control accuracy		mm	± 0.01
Positioning accuracy		mm	± 0.02
High Pressure System	Max Pressure	380	380
High Pressure System	Power	37(50HP)	37(50HP)
Total electric power		KW	38
Max load of working table		Kgs	1000
Format supported		AI, PLT, DXF, etc
Machine weight		Kgs	5650
Outside dimension		mm	4050x2250x1850
Product Name			Water Jet Cutting Machine for Sale
