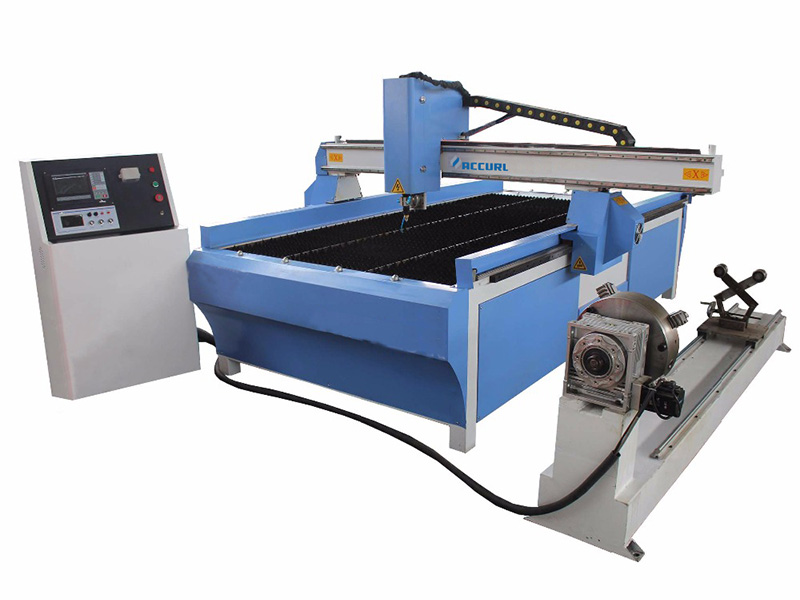

specialized factory working precision 0.2mm/meter pipe saddle cutting machine

pipe saddle cutting machine

Product Description

Name

2 AXIS CNC PIPE CUTTING MACHINE

Model

CNCUT-P250-ST

CNCUT-P500-ST

CNCUT-P250-SE

CNCUT-P500-SE

Chuck And Motor Style

86 Series 120 Step Motors + Worm Gear Box

750W Panasonic Servo Motor + Reduce Gear Box

Input Power

Single Phase AC 220V

Single Phase AC 220V

Approximately 800W

Approximately 1000W

PipeLength

Produce according to clients' demand

Produce according to clients' demand

Size Of Chuck

φ250mm

φ250mm + Connected Jaw

φ250mm

φ250mm + Connected Jaw

Pipe Diameter

φ50~φ260 mm

φ50~φ500 mm

φ50~φ260 mm

φ50~φ500 mm

Max. Weight Of Pipe

≤250 kg

≤600 kg

Customizing

Please contact ZHAOZHAN's salesman if you have any other pipe length,  weight, diameter demand. We will supply you Fully customized programs

Cutting Modes

Plasma Cutting (Working with plasma generator) and Flame Cutting replacement used

Reduction Ratio

1:21 (might be changed)

1:175 (might be changed)

Max Pipe Rotate Speed

0-10 rpm(can be adjusted as special demand)

0-15 rpm(can be adjusted as special demand)

Ovality Of Pipe

≤2%

Numbers Of Pipe Supporter

Supply according to real pipe situation

Auto ControlledAxis

Two-axis linkage

Torch Lifting Distance (Z)

≤210mm

Working Precision

± 0.2 mm / meter

Flame (Gas) Cutting Thickness

Piercing Capacity: 5 - 60 mm
Edge Start: 5 - 120mm

Plasma Cutting Thickness

Depends on the cutting capacity
of the Plasma Generator

Plasma THC

Optional

Gas Pressure

Acetylene Gas or Propane Gas Max  0.1Mpa

Oxygen Pressure

Oxygen Gas Max  0.7Mpa

Cutting Table

Separated with main machine. Cutting table and pipe supporters and chuck will be supplied.

Product Details

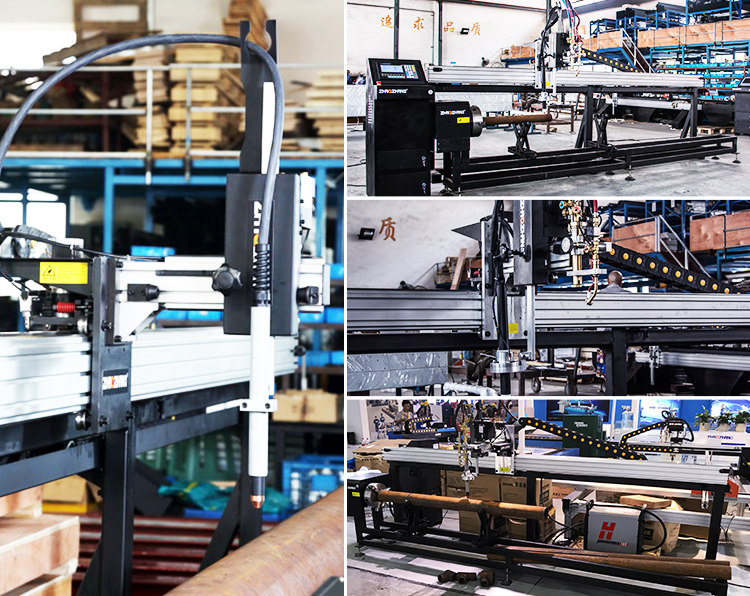

1.It is used gantry style design, which is parallel to the pipe. The tractor with lifting tool installed on the gantry beam. The pipe fix by chuck jaw, and with movable and adjustable pipe supporters which on the rails and under the pipe.

2.When cutting, CNC control system will control the tractor move and pipe rotate, to cut the pipe. Whole machine work stability and can be long term used. Easy operation and high efficiency.

3.Fit work for 50-500mm diameter without bevel cutting pipes.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: CNCUT-P
Voltage: 220V 50/60Hz single phase, plasma generator: 380V 3 phase
Rated Power: 2000W
Dimension(L*W*H): 3500*1000*1500/3500*1000*1500
Weight: 400kg
Certification: CE
Warranty: ONE YEAR
After-sales Service Provided: Overseas service center available
Item Name: Specialized Factory Working Precision 0.2Mm/Meter Pipe Saddle Cutting
Cutting Speed: 0-10000mm/min
Moving Speed: 0-10000mm/min
Cutting Depth:100mm
Cutting diamerter: 500mm
BEVEL CUTTING: 0.2mm
Program and ethyne gas cutting:available
Power Supply: AC220V±10% 50/60HZ
Numbers of torch: one (flame or plasma) / can order two torches on one slider
Plasma generator: HYPERTHERM OR VICTOR
