square / round / oval / triangle / rectangular pipe laser cutting machine price / tube laser cutter

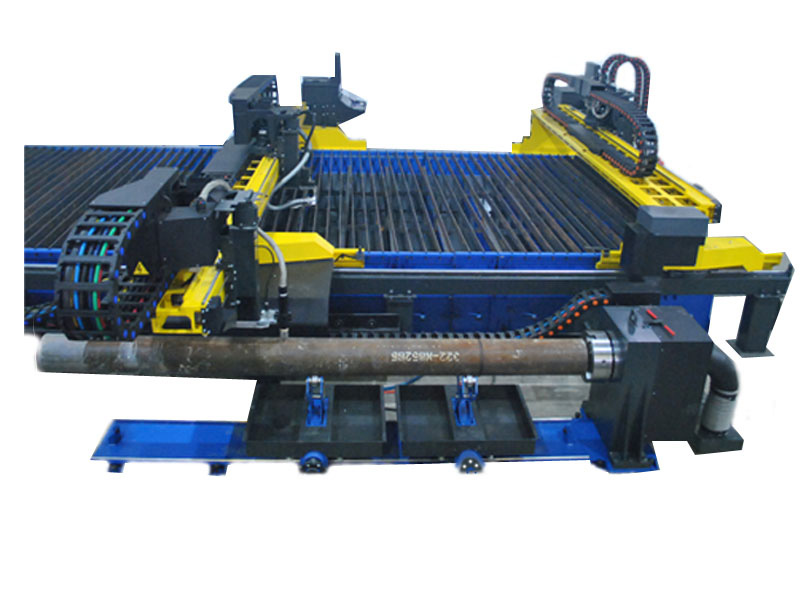

steel pipe cutting machine

Product Description

Machine Application
Applicable Industry
furniture, medical device, fitness equipment, oil exploration, display shelf, farm machinery, bridge, boating, structure parts,
Applicable material
Specially for round, square, rectangular, oval, waist round tube and other metal sheets&tubes

Machine Technical Parameters

Model number：P2060A/P3080A
Tube length: 6000mm/8000mm
Tube diameter: 20mm-200mm/20mm-300mm
Laser source: imported fiber laser resonator
Laser source power: 700W/1000W/2000W/3000W
Position accuracy: ±0.03mm
Repeat position accuracy: ±0.01mm
Maximum position speed: 70m/min
Acceleration: 1g
Cutting speed: depend on material, laser source power
Electric power supply: AC380V 50/60Hz

Main Features

Fully automatic CNC laser tube cutting machine, which utilizes an automatic loader and unloader allowing this machine to run continuously with minimal operator involvement.

1.Can cut lines and holes with different diameters from different directions on the pipe,and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
2.Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal non-centrifugal vertical intersection condition for branch and main pipe axis.
3.Can cut inclined with the main circular pipe.
4.Can cut branch pipe intersected with the main circular pipe.
5.To realized angel groove face,square hole,waist-shaped holes cutting.

P2060A Machine Operation Process

1.Automatic loading bundles of tubes
2.Automatic materials alignment
3.Automatic feeding and rotation
4.Fiber laser pipe cutting / tube cutter
5.Automatic collecting metal pipe products

Machine Main Parts

Machine Parts

Name: Automatic Bundle Loader

Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose.
Round pipe,rectangular pipe and other pipes can be fully automated loading, without human intervention.

Machine Parts

Name: Automatic collecting device
1.Automatic elevating support, receive tube and scrap into the basket
2.Visual scale support can adjust support diameter quickly according to pipe diameter
3.Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging

Machine Parts

Name: Power Chuck
1.Chuck by changing the gas path, the usual four-jaw chuck linkage, optimization Cheng stroke power chuck double acting.
2.Cutting different diameters, the shape of the pipe in the travel range (bilateral stroke 80mm),no need to adjust the jaw easy setup and centered.
3.easy switching of different diameters, a substantial saving setup time.

Machine Parts

Name: Pneumatic Support:
The cutting of pipes of different diameters, by adjustable support system to quickly and accurately find concentricity pipe and claw, to achieve rapid feeding, care feeding purposes, saving setup time cut-out.You can assist chuck support, reducing the swing pipe.

Quick Details

Application: Laser Cutting
Condition: New
Laser Type:Fiber Laser
Applicable Material: Metal, SS,CS,MS,Aluminum,Brass,Copper,
Cutting Thickness: 0-25mm metal
Cutting Area: 200*6000mm,300*8000mm,200*12000mm
Cutting Speed: adjustable
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut / Germany PA HI8000
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: P2060A
Certification: CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Metal p[ipe / tube laser cutting machine
Laser power: 700w 1000w 2000w 3000w
Tube length: 6m,8m,12m
Tube diameter: 20mm-200mm,20mm-300mm
Types of tubes: Round,square,triangle,rectangular,oval and other special tubes
Laser source: IPG / N-light fiber laser resonator
Position accuracy:±0.03mm
Repeat position accuracy: ±0.01mm
Maximum position speed: 70m/min
Acceleration: 1G
