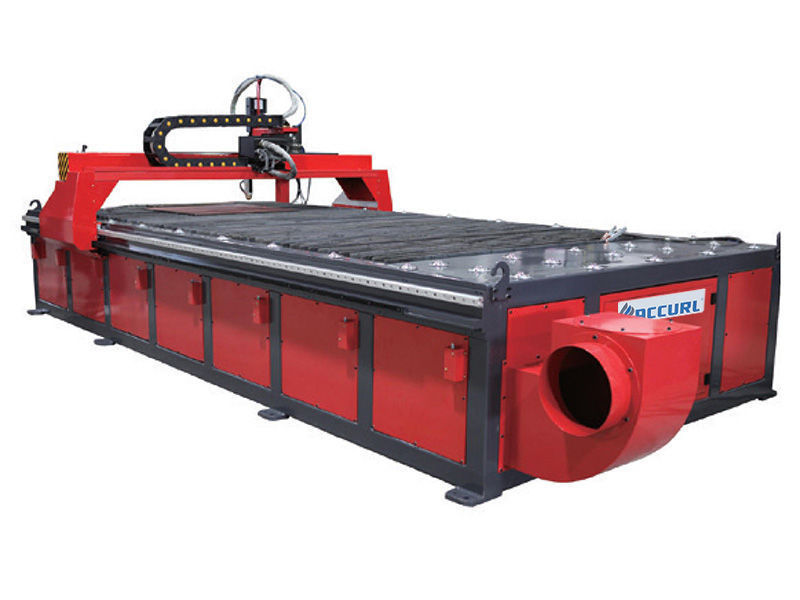

stainless steel /aluminum/iron sheet 1530 table cnc plasma cutting machine with cad program

Application:

---

For iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates. Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting

Features:

---

>THC HEIGHT CONTROLLER--The numerical control system with high disposes, the automatic striking arc, the performance is stable. Stuart cutting system panel, Auto Initial Height Sensing, Arc Voltage Divide etc, can cut different thickness, automatic height control, easy operation, high efficiency.

> Blade and saw working table for choose,support heavy metal with high stabilit.

> High precision square rail, and rack gear.

> Roll ball, convenient to feed.

> ACCURL plasma power supply(USA Hypertherm for optional),excellently performance,low failure rate, more secure.

> CUTTING SYSTEM/CONTROL SYSTEM PANEL--Starfire cutting system-SF-2100C/ Start cutting system/ FLMC-F2300A can be choose.

>Stepper motor (servo for optional) cooperate with precision machinery transmission system, faster and more stable, higher cutting efficiency.

Parameter:

---

Condition: New
Model Number: 1325
Voltage: 220V/380V
Rated Power: 7.5kw
Dimension(L*W*H): 1300*2500mm
Weight: 1500kg
Certification: CE ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Cnc Plasma Cutting Machine
Cutting mode: Plasma Cutting+ Flame Cutting
Cutting material: Metal Stainless Steel Carbon Steel Aluminum
Type: Hydraulic Cutting Tools
Application: Industrial Metal Cutting
Control system: START Control System
Cutting thickness: 0-30mm
Cutting speed: 0-8000mm/min

Working  Area	1300x2500mm
Cutting speed	8-15m/min
Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Motor	Step motor
Cutting thickness	0-30mm (depends on power supply)
Power	8.5KW
Transmission model	Gear rack drive
Input voltage	3 phase 380V
Power supply	LGK--63A,100A,160A,200A Hypertherm--65A,85A,105A,200A
Cutting system	Beijing Stuart cutting system (English)
Transmission system	X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack
Support software	Drawing software--CAD Nesting software--Australia fastcam software Cutting path file--artcam, type3 etc
Height control	arc voltage torch height controller
Guide way	Imported square rail
Table-board	Steel blade saw tooth mesa
Steel blade saw tooth mesa	Ray plug drives 860 (Sino-us joint venture large drives)
Working mode	Non-contact arc
