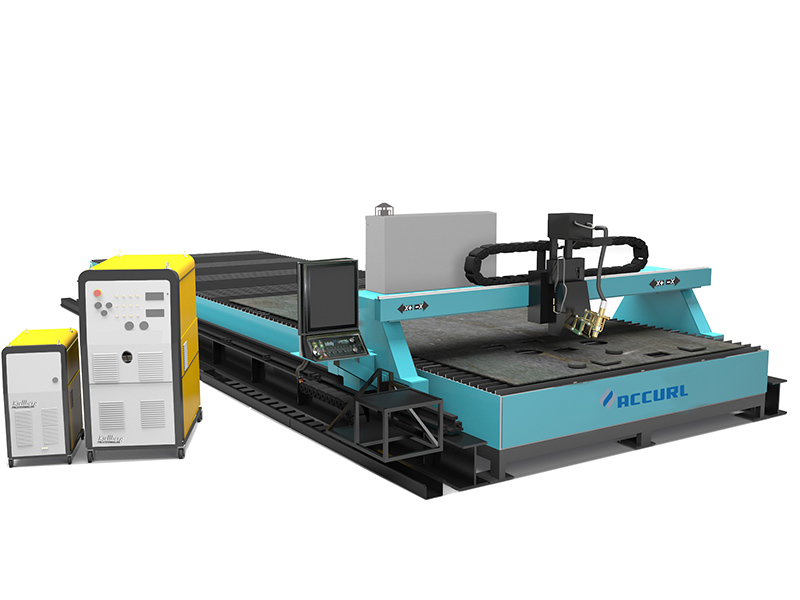

steel aluminum pipe tube cnc plasma cutter plasma cutting machine

steel tube cutting machine

Different plasma source maximum cutting thickness

China Huayuan supplier	63A	6mm
	100A	15
	160A	20
	200A	30
USA Hyper therm supplier	45A	8
	65A	12
	85A	15
	105A	18
	125A	25
	200A	30

Plasma cutting machine features:

1. Plasma machine uses light structural design,with good rigidity structure, light deadweight

and small movement inertia.

2. Plasma machine,the gantry structure, ,X,Y,Z axis all use straight rail that make the machine driving

smoothly with high-precision.

3. Plasma machine aiming at cutting three dimension LED character, trough metal panels and

floor cutting, the accuracy can reach good indicators.If it equipped with United States USA

plasma source the machine can reach threshold.

4. Plasma machine is equipped with other advertise equipment (blister machine,engraving

machine), forming the advertising word processing pipeline. Completely solve the traditional

manual processing methods.Improve the efficiency of several times.

5. Cutting mouth of plasma cutting machine is small, tidy,and avoid a second dressing processing.

6. Plasma machine can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred

steel plates ,metal plates and so on.

7. Plasma machine is high cutting speed, high precision, and low cost

8. The numerical control system disposes high, the automatic striking arc, the performance is stable.

Optional parts:

1) Flamecutting head;

2) Drilling head for hole diameter 16mm, 20mm, 25mm

3) Rotary

Plasma cutting machine parameters:

Model	Plasma cutting machine ACCURL1325
Working size	1300*2500mm
Repeat positioning accuracy	±0.05mm
Traveling speed	40m/min
Cutting speed	10-15m/min
Transmission model	Gear and rack drive
Transmission system	X,Y axis gear
Operating System	START/STARFIRE or DSP with USB Interface
Driver	Leadshine Stepper drives
Plasma power supply	Beijing Huayuan
Cutting thickness	0.3-30mm
Cutting type	Plasma
Input voltage	3 phase,220v/380v±10%
Mode of file transfer	USB Interface
Table-board	Steel blade saw tooth mesa
Straight line positioning precision	±0.2mm/10m
Straight line repeat precision	±0.3mm/10m
Environmental temperature	-5~45°C
Humidity	<90% No concreting

Plasma cutting machine applications

Stainless steel, carbon steel and other metal materials precise cutting, suitable for aerospace

technology,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts

processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.

Plasma cutting machine main parts:

Huayuan brand plasma source, there are 63A 100A 120A 160A 200A for your optional.

Also have USD Hyper therm brand for optional 45A 65A 85A 105A 125A 200A

Starfire control system, support Chinese, English, Russian, Spanish,Czech, Portuguese French,

Japanese,Slovakian language.convenient for your using.

Plasma cutting torch and sawtooth table;

Also have flame cutting head, drilling head for your optional

Guarantee & After-sale Service

1) 24 Months warranty under normal use and lifelong maintenance we supply

2) 24 hours technical support by phone, email and other online contact.

3) Free training on machine operation, daily maintenance etc. in seller’s factory.

4) Friendly English operation manual.

Quick Details

Condition:New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Voltage: 380V
Rated Power:8.5KW
Dimension(L*W*H):1300*2500mm
Weight: 1200kg
Certification: CE ISO
Warranty: 2 Years
After-sales Service Provided: Engineers available to service machinery overseas
Name: price of plasma in china
Cutting material: Metal Stainless Steel Carbon Steel Aluminum
Cutting mode: Plasma Cutting
Control system:STARFIRE Control System
Cutting thickness:0-30mm
Cutting speed: 0-8000mm/min
Working table: Sawtooth table
Plasma source: 63A 100A 160A 200A
Torch height controller: Yes
Motor: Stepper motor and Leadshine
