steel cutting machine for fiber laser cutting metal pipe cutting for sale

Product Description

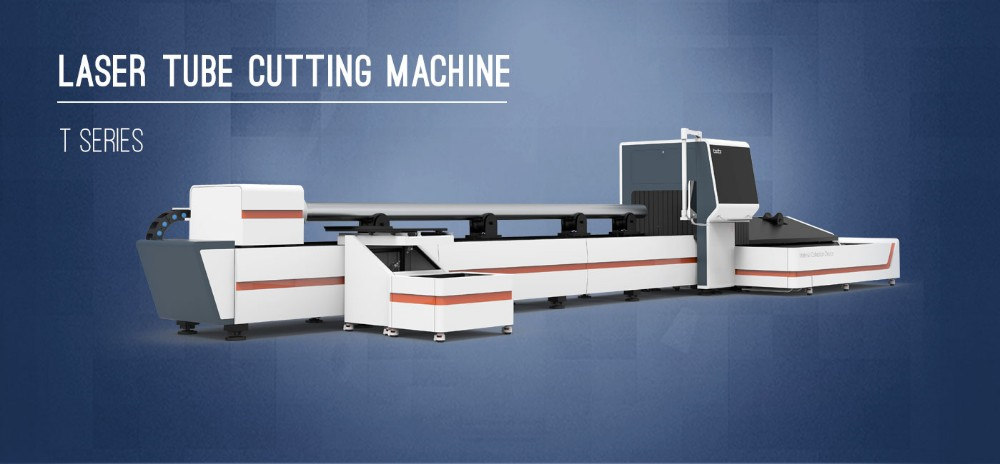

Tuber Laser Cutting Machine From Bodor Laser T-Series

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube: 20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc

Product Application

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc.

Features

1. Design of double electric chucks and double servo motors， apply to cut tube as round ,square, Rectangular tube, oval tube, I-beam, etc.
2. Pneumatic rolling wheel supporting design to ensure the turning stability during cutting.
3. High-performance laser source and stable operating system that make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine can be used for cutting a variety of metals with excellent and stable cutting quality.
6. With a specialized CAD / CAM automatic programming software and automatic nesting software, it is possible to maximally g save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Machine parts show

Fiber source

* IPG Brand Fiber Laser Source
* Stable Running Performance
*High Efficiency cutting effect

Water chiller
*S&A Brand, top brand in Water chiller
*Dual cooling function
*Cool the laser head and fiber source

Laser head

Raytools laser head

From Swiss

With high precision

Software

Cypcut software

1. Cypcut itself can draw easy graphics.
2. For difficult graphics, lots of software can be used, such as Mater Cam, Auto Cad, Coredraw, Type 3 etc
3. Cypcut software support.plt, .ai, .dxf,.plt,.gerber format.
4. It support English, Russian, Chinese.
5. It is easy to operate and use.
6. We have professional User Manual of this software.

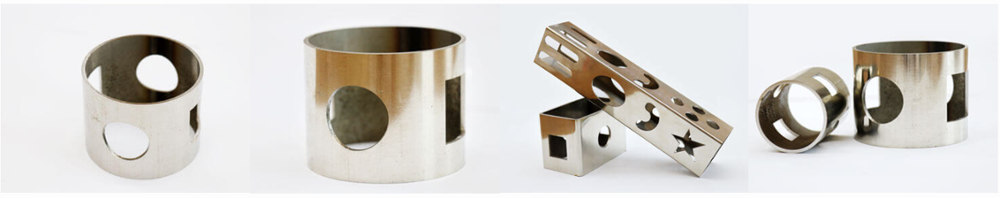

Samples show

Service & FAQ

>>Try to Read This -------Our Service1. Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3. We will provide the consumable parts at an agency price.
4. 24 hours online service, free technical support.
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance..

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: T6/T9
Voltage: 380V/50HZ 220v
Rated Power: 12kw 13kw
Dimension(L*W*H): 6m length, diameter: 20-200mm
Weight: 2500KGS
Certification: CE,FDA, SGS
Warranty: 3 years, 3 years
After-sales Service Provided: Engineers available to service machinery overseas
Max. cutting speed: 25m/min
Cooling way: water cooling
Min. line width: 0.15mm
Cutting thickness: 6mm/9m
Cutting material: Metal Stainless Steel Carbon Steel Aluminum
Control system: ACCURL Pro
Max.cutting speed: 35m/min
Max.acceliration: 1.2g
Application: Industrial Metal Cutting
