steel sheet flame cutting machine for sale

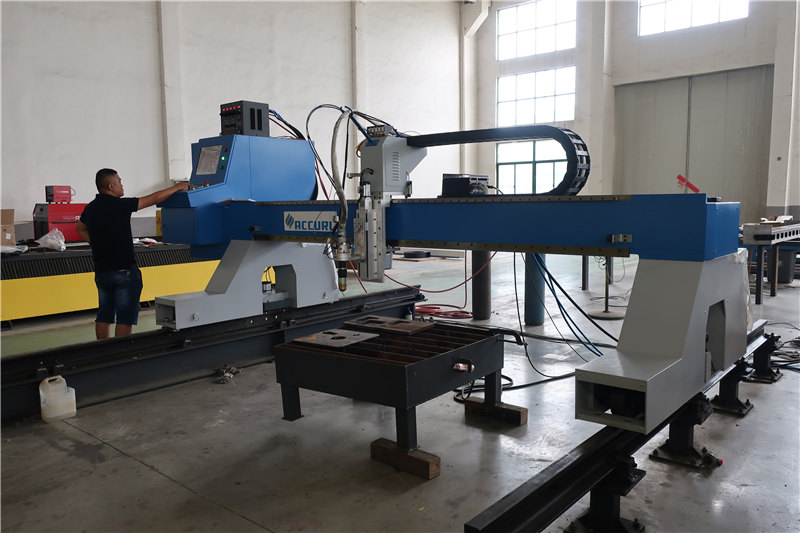

gantry type cantilever cnc plasma and flame oxyfuel cutting machine for sale

Feature


1. All welded as seamless steel structure. Steady structure and long life time
2. High configuration, with Taiwan HIWIN square guide rails, high cutting speed and precision.
3. DSP or START control system
4. China made plasma power , of course, if you need, also can be optional America Hyperthern plasma power.
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
7.With exporting plywood package

Application


Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

Technical parameters


specification1325 /1530 model
Processing area1300mm*2500mm (1500*3000mm)
Processing materialIron plate, aluminum, galvanized sheet steel, titanium plates, white and sheet metal
Processing thickness0.5-15mm
Cutting speed0-8000mm/min
power8.5KW
Input voltage380V
Power frequency50Hz
Plasma current60A-200A
Control systemSTART control system with THC
Work modeNon-contact arc starting

Optional


1, Different working size:1300X2500MM /1500X3000MM or other sizes according to customers' needs

2, Servo motors and drivers

3, Different power: 65A /100A /200A for different thickness cutting, also can be optional America Hyperthern plasma power.

4, Thin board, you also can choose DSP control system without THC, then the machine will be cheaper, But it's best to cut board 0-3mm.

Basic Info
Model NO.: 2040
Model: 2040
Working Area: 2000*4000mm
Plasma Power: 60/80/100/120/160/200A
Motor: Stepper Motor
Table: Aluminum Knife Table
Control System: Starfire Control System with Thc
Delivery Time: 10 Working Days
Warranty: 1 Year
Package: Exporting Pallet Package
Keywords: Plasma Cutting Machine
Trademark: ACCURL
Transport Package: Exporting Plywood Package
Specification: CE. SGS
Origin: Anhui, China
HS Code: 8456401000
