Detailed Product Description
| Model Number: | GSII-PS4028-PMAX-105A | Plasma Power: | Hypertherm Powermax105 USA |
|---|---|---|---|
| Gantry Type: | Table | Effective Cutting Area(Length): | 4200 X 28800mm |
| Flame Cutting Thickness: | 6-350 Mm | Cutting Positioning Accuracy: | ±0.5mm/m |
| Plasma Cutting Thickness: | Depending On Plasma Power Supply | Keywords: | CNC Flame Cutter Machine |

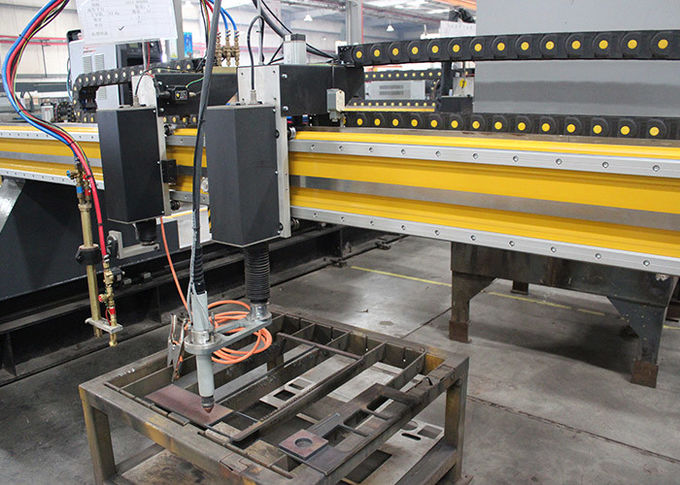

Metal Cutting Machinery 4200 x 28800 CNC Plasma and Flame Cutter Mini Portable CNC Plasma Cutter
Product Description
Portable cnc flame cutting machine can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .
1. Dynamic and static graphic display, easy to learn.Can convert CAD file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine .
2. Track and movement organizations adopt unique design, ensuring the working precision of machine.
3. Can use flame cutting (gas cutting ) and plasma cutting .
4. Interfaces in English or Chinese can be converted freely.
5. Economical, Portable and easy to operate.
6. Great working stability, effective shield plasma high frequency interference.
Product Features
1. Tailored track acquires high-intensity, high-speed and high-precision features.
2. Human computer interface design makes the machine easy to learn and operate, and have complete functions.
3. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
4. Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
5. With two cutting modes: Flame Cutting & Plasma Cutting.
6. Chinese, English, French, and Portuguese are ready to use.
7. Can automatically memorize and restore when power is off.
8. Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,protect the torch form damage and prolong life span of the nozzles.
9. With status indication device.
10. With positioning functions of protection cover, proximity switch and dual-speed.
11. Compatibility of the domestic plasma and foreign-brand plasma.
THE STANDARD COMPONENTS
1. The longitudinal, transverse drive are all use high-precision gear and rack.( Class 7 Precision) for transmission. Both longitudinal and transverse have all adopted liner guide rail are imported from Taiwan,China to guarantee the stability in moving, high-precision, durable in usage and good appearance.
2. The reducer is planetary gear reducer for precision in moving and also balance.
3. The drive system is from imported Japan AC servo drive for steady in movement, a wider range of speed transmission, short acceleration time.
The AC servo drive is the UP-TO-DATE JANPAN PANASONIC AC SERIES SERVO MOTOR
Machine instruction
Portable numerical control flame/plasma cutting machines can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .
| Type | ACCURL PS - 4028 |
| Product Name | CNC Flame Cutter Machine |
| Cutting Table | 4200 x28800 mm |
| Machine Width | 6250 min-1 |
| Machine Lenght | 30200 mm |
| Machine Height | 2200 mm |
| Table Height | 750 mm |
| Table Width | 4200 mm |
| Table Lenght | 27200 mm |
| X Axis Stroke | 4800 mm |
| Y Axis Stroke | 28200 mm |
| Weight | 33000 kg |
