table type cnc plasma cutting machine for metal sheet

cnc plasma cutting machine

Product Description

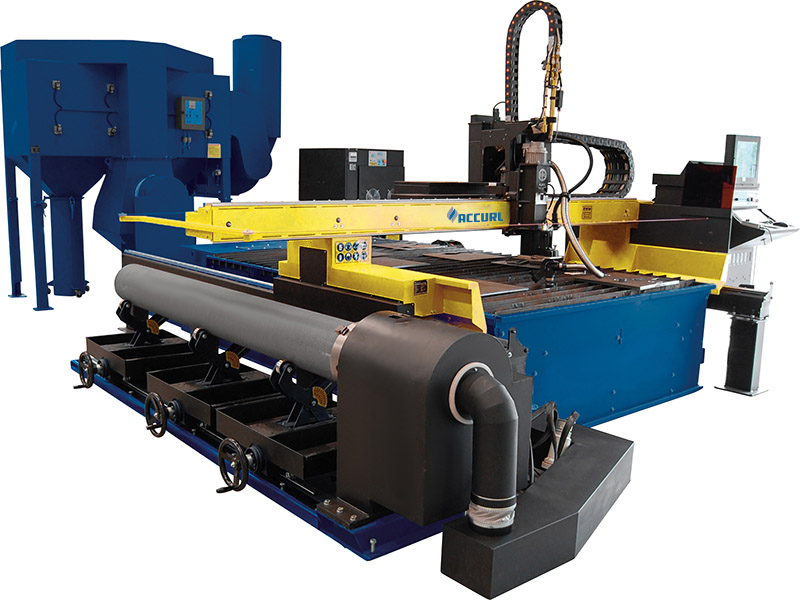

Table type CNC Plasma Cutting Machine for Metal Sheet

Plasma Cutting Table

Feature


(1) Install easily
(2) Two cutting ways: flame or plasma.
(3) It is a high-efficiency, high-precision and high reliability cnc cutting equipment
(4) Double-side driving servo system, guarantees an excellent running performance.
(5) Optional dust proof work table or smoke removing device for a clean working environment.
(6) Optional plasma power for different materials cutting.

Parameters


Model No.15/183015/1840
Cutting width(mm)1500/18001500/1800
machine width(mm)2000/22002000/2200
Cutting length(mm)30004000
Machine length(mm)46205620
CNC systemHypertherm or China brand
Cutting thicknessdepends on plasma power
Cutting worktableNormal or dust proof work table

Mechanical Accuracy
1. Installation accuracy of guide rail:
1) Straightness accuracy of main rail           ±0.2mm/10m
2) levelness between two rails           ±0.5mm/10m
3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length
4) Parallelism between two rails        <±2mm/ rail space
2. Machine precision:
a. Longitudinal effective stroke    >nominal size 20mm
b. Transverse effective stroke       > nominal size 10mm
c. Linear positioning accuracy   ±0.1mm/10m
(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm
d. Linear repeat accuracy                 ±0.4mm/10m
e. Torch stroke                              ≤170mm
f. Cutting speed                 ±5% of setting speed
g. Automatic lifting precision                   ±0.5mm
3. Comprehensive machine precision:
a. Length deviation(four sides)              0.3mm
b. Diagonal deviation                   0.3mm
c. Back to the origin of the deviation                 0.2mm
d. Diagonal straightness accuracy                  0.3mm
e. Intersection deviation                       0.3mm
f. Linear deviations                           0.2mm
g. Entire machine positioner precision                0.1mm

After-sale Service
♥ Warranty one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material

Basic Info
Model NO.: HF
Plasma Power Source: Kjellberg, Kaliburn,Hypertherm,Lgk
Program: Fastcam, Sigmanest
Name: CNC Plasma Cutting Machine
Voltage: 220V/380V
Plasma Power: Kjellberg, Kaliburn, Hypertherm, Lgk
Certification: Ce& ISO
Trademark: ACCURL
Transport Package: Wood Box or as Customer′s Requirement
Specification: 1500*3000
Origin: Anhui, China
HS Code: 85153900
