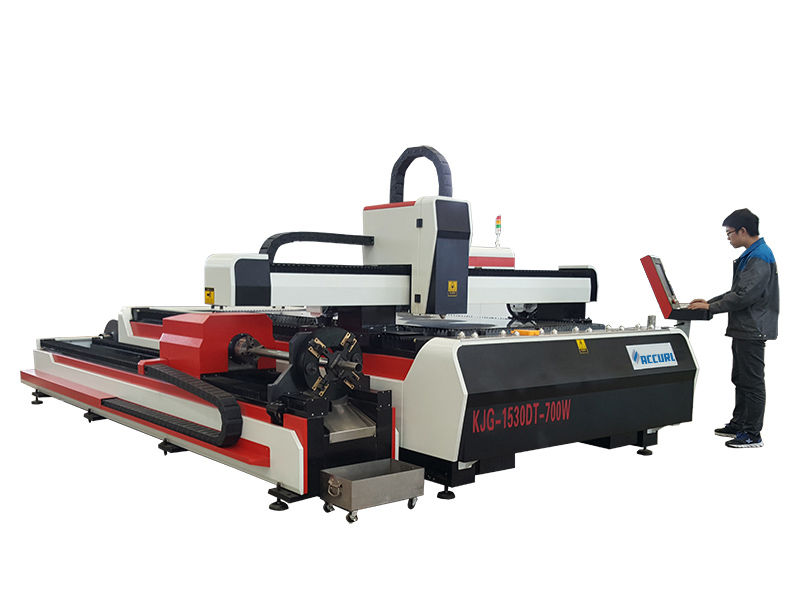

Thin metal laser cutting machine fiber 500w 1000w 2000w for 0.5-16mm thickness cutting machine

Quick Details

---

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-30mm
Cutting Area: 1500*3000mm
Cutting Speed: 35m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Bodor Pro
Graphic Format Supported: AI, DXF, PLT
Place of Origin: Shandong, China (Mainland)
Brand Name: Bodor
Model Number: P3015
Certification: CE, ISO, SGS, FDA,BV,TUV
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 500W / 1000W /1500W/ 2000W / 3000W/4000W
Keyword: Laser Cutter
Laser Source: IPG/MAX
Warranty: 3 years
Size: 9950*3050*2200mm
Weight: 11000Kg
Working area: 1500*3000mm
Lifetime: More than 20 Years
Cooling: Water cooling
Continuous working time: 24 hours

Characteristics of our laser cutting machine

---

1. full protection cover

Environment friendly and Healthy
Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.

2. two automatic exchange platforms system

time-saving and effort-reducing
Rapid exchanging between two platforms greatly improve work efficiency. Rack and pinion transmission system has better rigidity and higher accuracy, saving feeding time, making operation more efficient.

3. Appearance design

Surrounded by baking paint silver decoration,coordinated with diamond cutting tempered glass and alpine white sheet metal design, the international design of the machine is accepted by global consumer groups.The workplace is neat, orderly and space-saving.

4.  cast iron bed

Integrally formed, reject splicing
Using flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Good casting and cutting performance. Excellent lubricity, corrosion resistance and dimensional stability. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

5. Auto focus laser head

Free your hands, enjoy auto focus
(1) Auto focus
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
(2) Free
Focal length is controlled by operating system. We don’t need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
(3) Fast
It can automatically adjust the most appropriate focal points in working process, greatly improving cutting speed;
When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;
(4) Accuracy
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
(5) Durable
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.
Increasing collimation protective lens and focus protective lens, carefully protect key components.

6. Operating system display

Elegant appearance curve
The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient. Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use.

7. Cast aluminum crossbeam

Integral steel mold pressure casting, light, flexible and efficient
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.

Working size	1500*3000mm
Laser Power	1000/1500/2000/3000/4000w
Machine size	9950*3050*2200mm
Weight	11000Kg
Max moving speed	100m/min
Max Cutting Speed	35m/min
Min Line Width	0.1mm
Cutting Depth	0.2-6mm
Cooling Way	Water cooling
Driving and Transmission Way	Imported Servo Motor
Continuous Working Time	24 hours
Positioning Accuracy	0.03mm
Reposition Accuracy	0.02mm

Application Materials:

It is suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials

Application Industries:

The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
