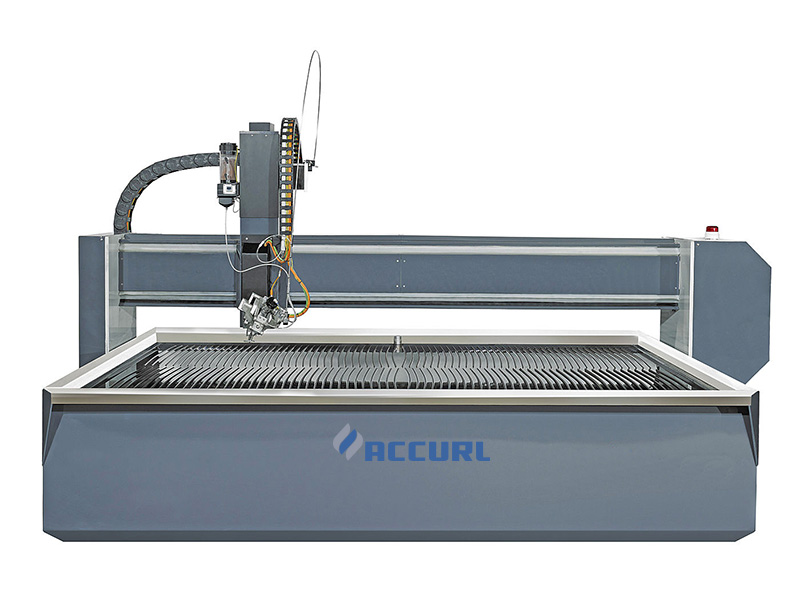

ultra high pressure gantry 3020 waterjet cutting machine

water jet cutting machine pressure

Description

Water jet cutting, ultra-high pressure water jet cutting machine is to ordinary water through an ultra-high pressure presses, the water pressure to 3000bar, and then through the channel diameter of 0.3mm water nozzle produces a water jet about 3 times the speed of sound, Under the control of the computer can be easily cut any graphics soft materials, such as paper, sponge, fiber, etc., if added to increase the cutting power of sand, you can cut almost any material.

Water jet cutting machine consists of four parts,water jet cutting table( cnc controller),water jet cutting head,water jet abrasive feeder system and waterjet intensifier pump.

Specification

Cutting table	model		1313	2015	3020	4020	6020	customized size
	Structure		gantry water cutting platform/cantiler series cutting platform
	Travel	X axis	1300mm	2000mm	3000mm	4000mm	6000mm
		Y axis	1300mm	1500mm	2000mm	2000mm	2000mm
	Speed	Max.move speed (x axis and y axis)	6000mm/min
		Max.move speed (z axis)	1000mm/min
	Accuracy	Positing Accuracy	0.127mm
		Repeat Accuracy	±0.076mm
	Water tank maximum Loading Capacity	300Kg/m2
Cutting head	3 axis / 5 axis Movement : Linear motion/Rotary motion
CNC Controller	15 inch LCD montior Support DXF and NC code file Software: Windows XP Resistance of the shoch and electro-magntic
	The key function
	Forward & Backward processing function Even pace control function Small arcs speed auto processing function Circle processing function
	Partial and smooth processing modes
Abrasive Feeder	Max. inlet air pressure 0.2-0.4 Mpa Min. inlet air flow 0.028m3/min Abrasive capacity 170 L
	Features
	Air valve to prevent jams and breakages Self sealing Auto control with CNC auxiliary function Slightly adjust the FLOW

Intensifier pump/ direct drive pump	intensifier pump			direct drive pump
	Reted power : 50HP (37 KW)	Max.pressure : 60000psi (4137 bar)	Control voltage and cuttent : 24DC,10AMPS	Reted power 30HP (22KW)	Output pressure : 55000psi	Max.pressure : 60000psi (4137 bar)
	Ambient temperature : 5-40 ºC	Fuel tank capacity :114L	Cooling flow : 11.4L/MIN	Air: 80-120psi	Operating voltage and power:210-240/360-420V 50HZ	Ambient temperature : 5-40 ºC
	Attenuation : 1L	Long : 1473 MM	Width : 1205 MM	Min.inlet water : 60psi 1 gallon/min.	Pump speed: 720 rmp	Fuel tank capacity : 2.6 L
water jet maintenance kit	high pressure repair kit low pressure repair kit switch rapair kit check valve repair kit			pcv repair kit dynamic seal repair kit minor maintenance kit major maintenance kit

Water jet cutting table

cutting table,water tank and cnc control system

Water jet cutting head

3 axis ECL abrasive cutting head/ 5 axis water jet cutting head

Company Product

Major Products
water jet cutting machine	water jet intensifier pump
water jet cutting head( 3 axis and 5 axis )	waterjet intensifier (60k and 87k)
waterjet spare parts	water jet maintenance kit
high pressure tube	Tee,Blbow,Coulping,Insert,Plug,Adapter
Superior product
94 ksi high pressure waterjet parts	waterjet direct drive parts
waterjet direct drive pump	Customize cutting table

Packing and Shipping

Water jet cutting machine spare part package : soft packing inside ,carton packing outside.

water jet cutting machine package : wooden package

The package ways is also can according to the requirement of customer

Basic Info
Model NO.: 3020
Type: Three-Axis
Code: Yh3020
Weight: 3700 Kg
Certificate: Ce
Warranty: One Year
Cutting Thickness: 6-200mm
Rated Power: 37 Kw
Max. Pressure: 60000psi
Voltage: 220V/380V
Cutting Material: Rubber, Foam, Plastic, Composite, Stone, Metal
Trademark: ACCURL
Transport Package: Wooden Packing Outside
Specification: 3000mm*2000mm
Origin: Anhui,China

Tags: high pressure water jet cutting machine, water jet foam cutting machine
